Products Chemical FRPP Pump

PL (Chemical FRPP Pump)

●PL Chemical FRPP Pump
● Tough construction against high corrosive and high temperature chemical liquids by adopting self-cooling design
● TEFLON BELLOW SEAL"
● Power: 1, 2, 3, 5, 7.5, 10 HP
● Frequency: 50/60HZ
● Motor: 2 Poles
● Agency Listing: CE, CSA, C-US Mark
● Maximum Permissible Temperature: 70 ºC
Download Spesifications

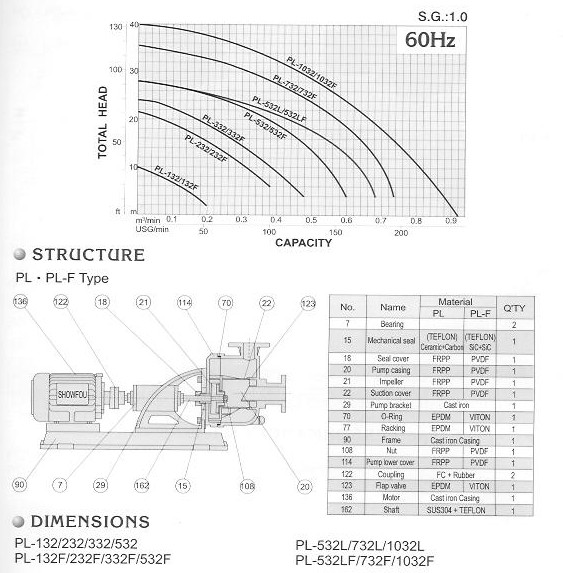

60 Hz Specification: 3450 RPM

Type	S.G.	Motor				Pump				# Wt.	Height.	Pump Dia.
		Power		Phase	Volt	Bore Size		Max. Head	Max. Flow	# Wt.	Height.	Pump Dia.
		HP	kW	PH	V	Inlet Inch (mm)	Outlet inch (mm)	m	m³/min	kG	mm	mm
PL-132	1.0	1	0.75	3	220 ~ 460	1.5"(40)	1.5"(40)	10	0.19	44	413	1140
PL-232	1.0	2	1.5	3	220 ~ 460	1.5"(40)	1.5"(40)	20	0.38	44	413	1140
PL-332	1.0	3	2.2	3	220 ~ 460	2" (50)	2" (50)	24	0.48	45	413	1140
PL-532	1.0	5	3.7	3	220 ~ 460	2" (50)	2" (50)	28	0.60	48	413	1140
PL-532L	1.0	5	3.7	3	220 ~ 460	3" (80)	3" (80)	28	0.68	49	413	1140
PL-732	1.0	7.5	5.5	3	220 ~ 460	3"(80)	3"(80)	35	0.73	53	413	1140
PL-1032	1.0	10	7.5	3	220 ~ 460	3" (80)	3"(80)	40	0.92	53	413	1140

The standard PL type pump is supplied without the motor. If required, you may order the motor to be shipped with the pump.
# The weight (Wt.) of motor is not included.
