Products Vertical Sealless Pump

PEB (Vertical Sealless Pump)

●PEB Vertical Sealless Pump
● Tough Construction against high corrosive and high temperature chemical liquids
● Power: 3, 5, 7.5 HP
● Frequency: 50/60HZ
● Motor: 2 Poles
● Agency Listing: CE Mark
● Maximum Permissible Temperature: 70 ºC

Download Spesifications

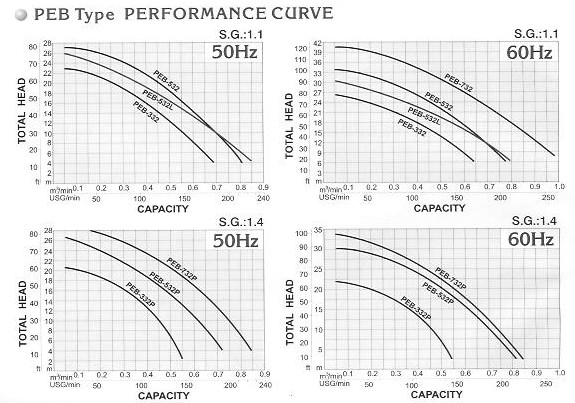

60 Hz Specification: 3450 RPM

Type	S.G.	Motor				Pump				Wt.	Height.	Pump Dia.
		Power		Phase	Volt	Bore Size		Max. Head	Max. Flow	Wt.	Height.	Pump Dia.
		HP	kW	PH	V	Inlet Inch (mm)	Outlet inch (mm)	m	m³/min	kG	mm	mm
PEB-332	1.1	3	2.2	3	220 ~ 460	2" (50)	1.5" (40)	26	0.64	41	762	340
PEB-532	1.1	5	3.7	3	220 ~ 460	2.5"(65)	2"(50)	33	0.76	55	811	340
PEB-532L	1.1	5	3.7	3	220 ~ 460	3"(80)	3"(80)	30	0.80	55	811	340
PEB-732	1.1	7.5	5.5	3	220 ~ 460	3"(80)	3"(80)	40	1.00	95	825	340
PEB-332P	1.4	3	2.2	3	220 ~ 460	2.5"(65)	2"(50)	22	0.54	41	762	340
PEB-532P	1.4	5	3.7	3	220 ~ 460	3"(80)	3"(80)	30	0.80	55	811	340
PEB-732P	1.4	7.5	5.5	3	220 ~ 460	3"(80)	3"(80)	33	0.84	95	825	340
