Pompa Kimia Showfou type PD untuk bahan kimia yang panas dan korosif : WA 081288997680

PD (Chemical FRPP Pump)

●PD Chemical FRPP Pump
● Maximum Permissible Temperature range: 70 ºC
● Output: 1 ~ 5 HP
● Adopts "Teflon Bellow Seal" with self-cooling mechanical seal inside for dealing with strong acid and alkaline or liquid with solid.
Very good self-priming ability and check valve design preventing liquid back flow.
● Tough construction against high-corrosive and high temperature liquid.
● Frequency: 50/60HZ
● Motor: 2 Poles
● Agency Listing: CE, CSA, C-US Mark

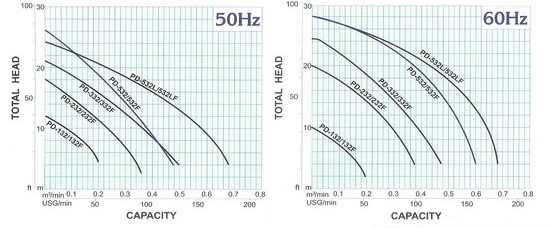

Download Spesifications

60 Hz Specification: 3450 RPM

Type	S.G.	Motor				Pump				Wt.	Height.	Pump Dia.
		Power		Phase	Volt	Bore Size		Max. Head	Max. Flow	Wt.	Height.	Pump Dia.
		HP	kW	PH	V	Inlet Inch (mm)	Outlet inch (mm)	m	m³/min	kG	mm	mm
PD-132	1.0	1	0.75	3	220 ~ 460	1.5"(40)	1.5"(40)	10	0.19	26	374	625
PD-232	1.0	2	1.5	3	220 ~ 460	1.5"(40)	1.5"(40)	20	0.38	34	374	704
PD-332	1.0	3	2.2	3	220 ~ 460	2" (50)	2" (50)	24	0.48	42	374	704
PD-532	1.0	5	3.7	3	220 ~ 460	2" (50)	2" (50)	28	0.60	56	420	780
PD-532L	1.0	5	3.7	3	220 ~ 460	3" (80)	3" (80)	28	0.68	68	425	830
