Products Chemical PP Liquid Filter

CF (Chemical PP Liquid Filter)

●CF Chemical PP Liquid Filter
● Equipped with Self-Priming Chemical Pumps
● Power: 1/3, 1,2, 3 HP
● Frequency: 50/60HZ
● Motor: 2 Poles
● Filter Tank Material: PP (Polypropylene)
● All PP filter casing are made by plastic injection molding machine, so they have rugged and durable construction.
● Flow Rate : 80, 180, 220, 330 L/min
● Micro Range : 1/2, 1, 5 10, 20, 50, 100 μ
● Operating Temperature Range: 15 ~ 80 ºC

Download Spesifications

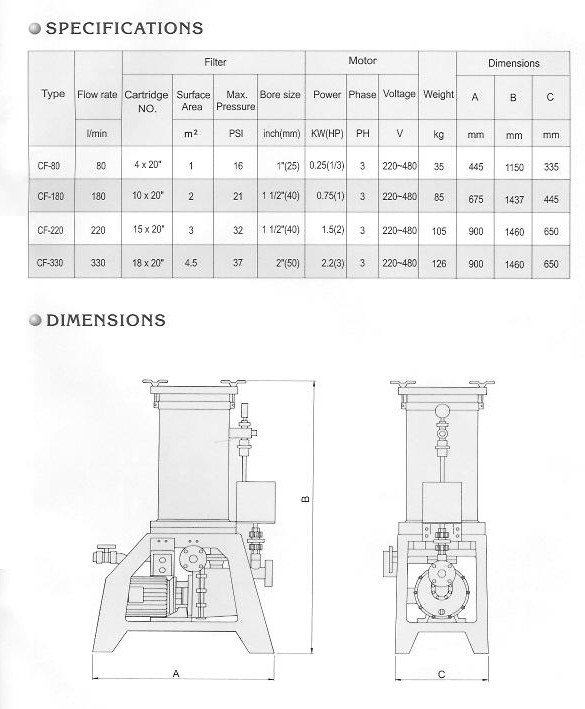

Specification:

Type	Flow Rate	Motor				Filter				Wt.	Dimensions
	Flow Rate	Power		Phase	Volt	Cartridge	Surface Area	Max. Pressure	Bore Size	Wt.	L	W	H
	L/min	HP	kW	PH	V	No. x Length	m²	PSI	inch (mm)	kG	mm	mm	mm
CF-80	80	1/3	0.25	3	220 ~ 480	4 x 20"	1	16	1"(25)	35	445	335	1150
CF-180	180	1	0.75	3	220 ~ 480	10 x 20"	2	21	1.5"(40)	85	675	445	1437
CF-220	220	2	1.5	3	220 ~ 480	15 x 20"	3	32	1.5"(40)	105	900	650	1460
CF-330	330	3	2.2	3	220 ~ 480	18 x 20"	4.5	37	2"(50)	126	900	650	1460
