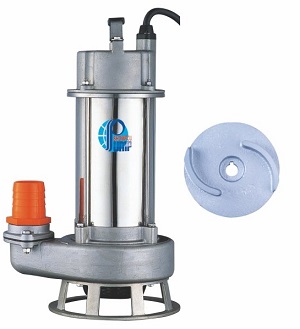

Fully Stainless SCS13(#304) Construction
Power: 1 ~ 5 HP
Motor: 2 Poles
Single Blade Semi-Open Non-clogging type Impeller.
Advanced "Shredder Mechanism"
Unique "Epoxy Cable Sealing Base".
Double Mechanical Seal (SiC/SiC with Viton) and separate Oil Seal.



Single Blade Semi-open Non-Clogging Impeller with Advanced Shredder Mechanism for Sewage Handling

FEATURES:
♦ Fully Stainless SCS13(#304) Construction :
The Motor headcover, motor lower cover, pump casing, impeller, and suction cover are all made of casting stainless SCS 13(#304), so these will have the capability of anti-acid & alkali, and also suitable for use in seawater.
♦ Non-Clog Impeller :
Hydrodynamically well-balanced single blade semi-open non-clogging type for sewage application.
♦ Advanced Shredder Mechanism :
Surface hardening heat treatment is done on impeller vanes and cutting edges, both of which are the main components of the shredder mechanism.
♦ Epoxy Cable Sealing Base
Unique “Epoxy Cable Sealing Base” to ensure 100% capability to block the water vapor into the motor from outside.
♦ Triplex Seal System :
Triplex seal system for less downtime and longer life: Oil-lubricated Double Mechanical Seals (highly wear-resistant SiC/SiC with Viton) and separate Viton Oil Seal.
The whole unit is equipped with Viton O-Ring.
♦ IP68 Motor:
Electricity-saving Motor with a level of IP68, suitable for continuous duty.
Digitalized balanced motor shaft and rotor.
♦ Quiet :
The well-balanced motor shaft and impeller enables the pump to run evenly with less noise.
♦ Compact and Light-Weight :
Designed to be light, so easy to carry and handle.
♦ Economical :
Long-runnable with less maintenance cost.



APPLICATIONS:
Ideal for sewage, industrial & groundwater drainage installation in the following fields.
Wastewater Treatment Plants

• Sewage pumping stations.
• Sewage treatment plants.
• Septic tanks.
• Collecting & settling sumps.

Chemical Industries

• Chemistry, heavy-chemistry, medicines, dyeing,  metal treatment, and electro-plating.
• bleaching, food, fishery, drinks, brewing, fiber, oil refining, and cosmetics.
• Plant for preventing pollution, sewage and drainage treatment
• Washing plant, dust collecting plant, and clean air plant.

Industrial Sites

• Mills & factories for pumping dirty water.
• Water purification plants.
• Flood and emergency.

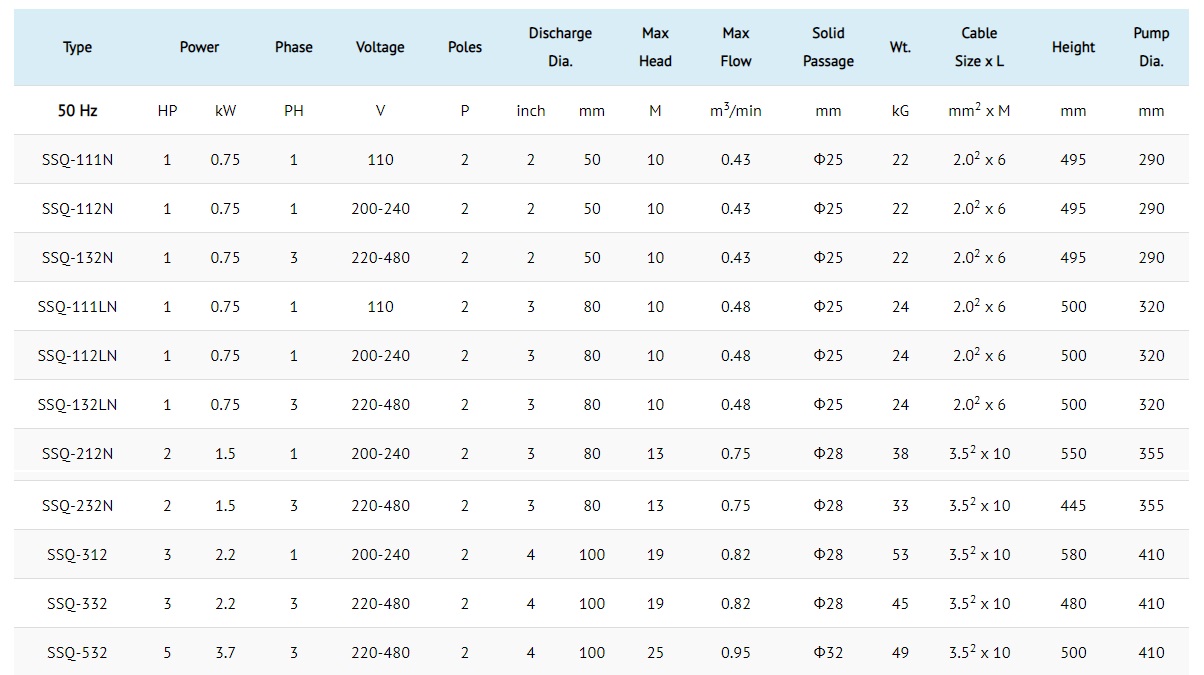

Specification 50Hz.
