BUILT-IN AUTOMATIC FLOAT KEY SWITCH
Power: 1/2HP and 1HP
Motor: 2 Poles
Single Blade Semi-Open Non-clogging type Impeller.
Advanced "Shredder Mechanism"
Unique "Epoxy Cable Sealing Base".
Double Mechanical Seal (Ceramic/Carbon) and separate Oil Seal.

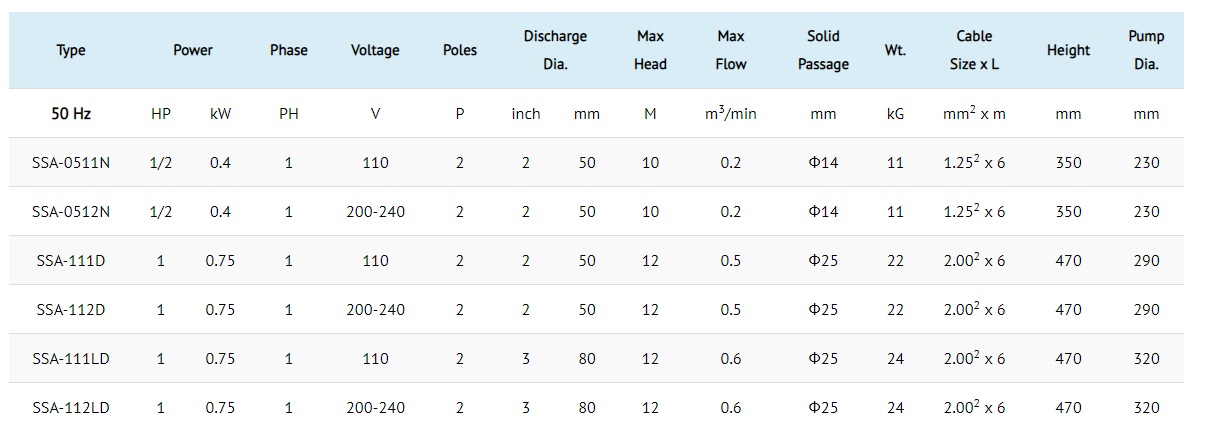

Specification 50Hz

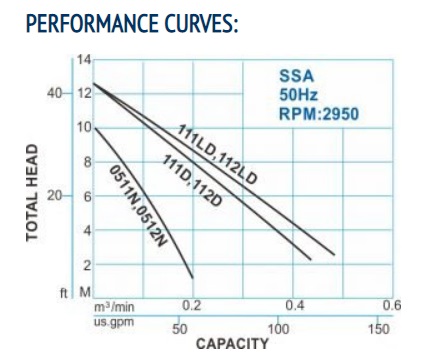

Performance Curve

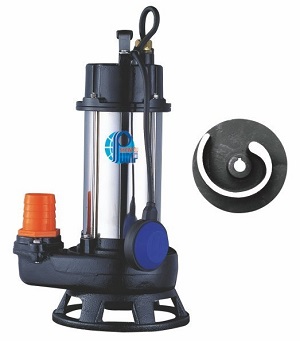

Single Blade Semi-open Non-Clogging Impeller with Advanced Shredder Mechanism for Sewage Handling
&diams Non-Clog Impeller :
Hydro-dynamically well-balanced single blade semi-open non-clogging type for sewage application.
&diams Advanced Shredder Mechanism :
Surface hardening heat treatment is done on impeller vanes and cutting edges, both of which are the main components of the shredder mechanism.
&diams Epoxy Cable Sealing Base
Unique “Epoxy Cable Sealing Base” to ensure 100% capability to block the water vapor into the motor from outside.
&diams Triplex Seal System :
Oil-bathed Double mechanical seal(Ceramic Carbon) plus separate oil seal ensures a longer pump life.
&diams IP68 Motor:
Electricity-saving Motor with a level of IP68, suitable for continuous duty.
Digitalized balanced motor shaft and rotor.
&diams Quiet :
The well-balanced motor shaft and impeller enables the pump to run evenly with less noise.
&diams Compact and Light-Weight :
Designed to be light, so easy to carry and handle.
&diams Economical :
Long-runnable with less maintenance cost.
Ideal for sewage, industrial & groundwater drainage installation in the following fields.
Wastewater Treatment Plants
Industrial Sites
Residential Sites
Commercial Sites
Power : 1/2 ~ 15 HP. Motor : IP68, 2 Poles. Impeller : Non-clog open type. Motor Casing: Stainless Steel # 304
