Paddlewheel Aerator (Showfou)

A Type Paddlewheel Aerators

Excellent oxygen transfer and circulation.
Suitable for freshwater and seawater.


Power: 1HP,2HP
Motor: 4 Poles

A-130A-230

FEATURES:

Motor:
High-efficiency TEFC design

Motor Cover:
Virgin HDPE, UV and chemical resistance
Impact and high wind resistant

Gear Reducer:
1:13.5 (50Hz), 1:16(60Hz)

Frame, Drive Shaft & Hardware
304 Stainless steel to provide rust resistance and longer life

Paddle Wheels
Eight blades, fiber-reinforced nylon

Floats
Virgin HDPE, UV and chemical resistance
Strong but lightweight for easy handling

APPLICATIONS:
Aquacultural shrimp pond or fish pond.

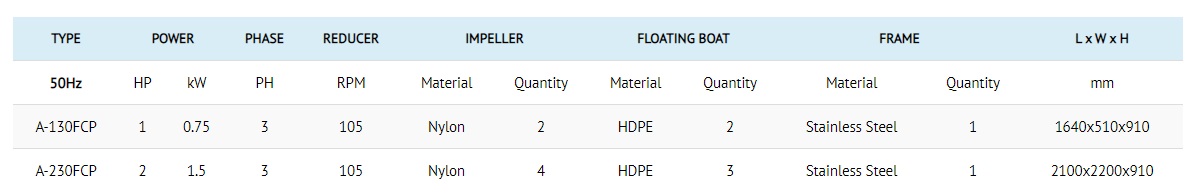

Specification 50Hz

Specification 50Hz

Paddlewheel Aerator (Showfou)

Paddlewheel Aerator (Showfou)

Paddlewheel aerators also utilize air-to-water contact to transfer oxygen from the air in the atmosphere to the water body. They are most often used in the aquaculture (rearing aquatic animals or cultivating aquatic plants for food) field. Constructed of a hub with attached paddles, these aerators are usually powered by a tractor power take-off (PTO), a gas engine, or an electric motor. They tend to be mounted on floats. Electricity forces the paddles to turn, churning the water and allowing oxygen transfer through air-water contact. As each new section of water is churned, it absorbs oxygen from the air and then upon its return to the water, restores it to the water. In this regard paddlewheel aeration works very similarly to floating surface aerators.
