Power: 3HP, 5HP, 7.5HP
Motor: 2 Poles, Three-phase
FRPP: Fiber Reinforced Polypropylene
New Sealless Structure Design and Unique Vapor Seal Feature to provide Dry Running Ability
Maxi. Permissible Temperature for FRPP Material: 70 ºC



FEATURES:
♦ Sealless Structure

• No Seal or bearing in the pump head to wear out.
• During running, the two-layered impeller could seal up the fluid successfully and reduce the suction air intake in order to maintain a high vacuum situation inner space and high performance of the pump.

♦ Dry Running Ability

• As there is no contact, thus no friction between the pump body and the impeller, dry running for a long period of time is allowed and would not cause any damage to the pump.

♦ Vapor seal structure

• The motor is protected by the equipped vapor seal to avoid corrosion by chemical gas.
• When in operation the vapor seal is forced to open by centrifugal force to block the gas leakage.
• Once stops, the vapor seal will close to seal up any leakage of the chemical gas.

♦ Outstanding Performance Curve

• Reach higher Maximum head and achieve larger Maximum liquid flow.

♦ Highly Corrosion Resistant

• FRPP materials to withstand high temperatures and high corrosive chemical liquids.

APPLICATIONS:

• Transferring and circulating for plating solvents of the filter.
• Heat exchanger circulation.
• Press and reaction tank transfer.
• Reaction mixing tank circulation.
• Nickel electroplating.
• Petrochemical and Pharmaceutical industry.
• Any Hazardous Chemical Applications.

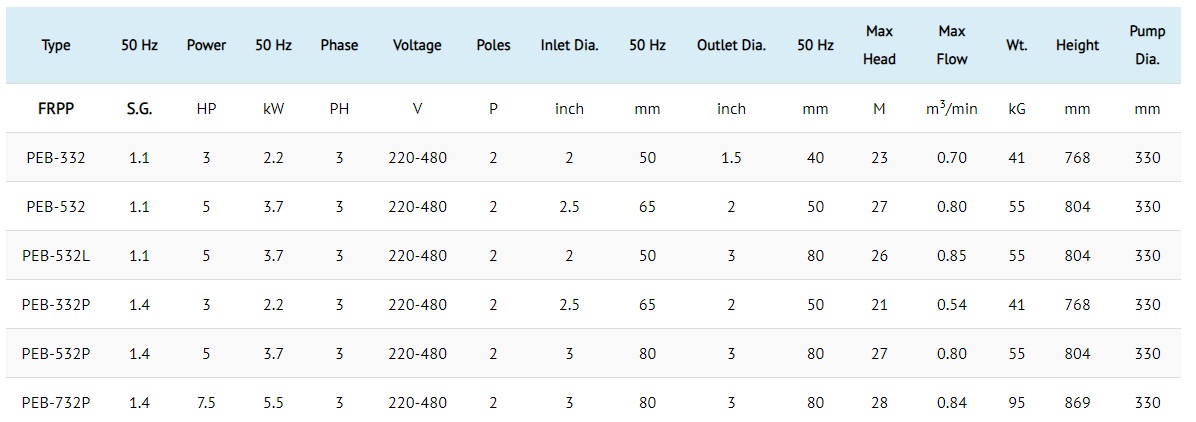

Specification 50Hz
