Power: 1, 2, 3, 5 HP
Motor: 2 Poles, Three-phase
♦ Special self-cooling design of "TEFLON BELLOW SEAL"
♦ Tough construction against highly corrosive and high-temperature chemical liquid
♦ Maxi. Permissible Temperature: 70 ºC

FEATURES:
♦ Special main shaft
The sus304 main shaft is covered with Teflon to resist high corrosive chemical liquids.

♦ Self-priming ability
Excellent self-priming ability can suck the liquid up to 6 meters, and the flap valve design can prevent liquid backflow to maintain the flow rate

♦ Teflon Bellow Seal
Adopting “Teflon Bellow Seal” and Superior anti-corrosive construction to withstand most of the chemical liquids such as strong acid and alkali. and the “pump lower cover” adopting with self-cooling design to prevent the “Teflon below seal” from damage

APPLICATION:

• Transfer for the tank to tank
• Heat exchanger circulation
• PCB washing pumps for etching machine
• Wasted and polluted water treatment.
• PCB electronic industry brick kiln industry.
• Paper industry, leather industry, dyeing, and textile.
• Surface electric plated industry.
• Chemical engineering industry.
• The medical and pharmaceutical industry and food industry.

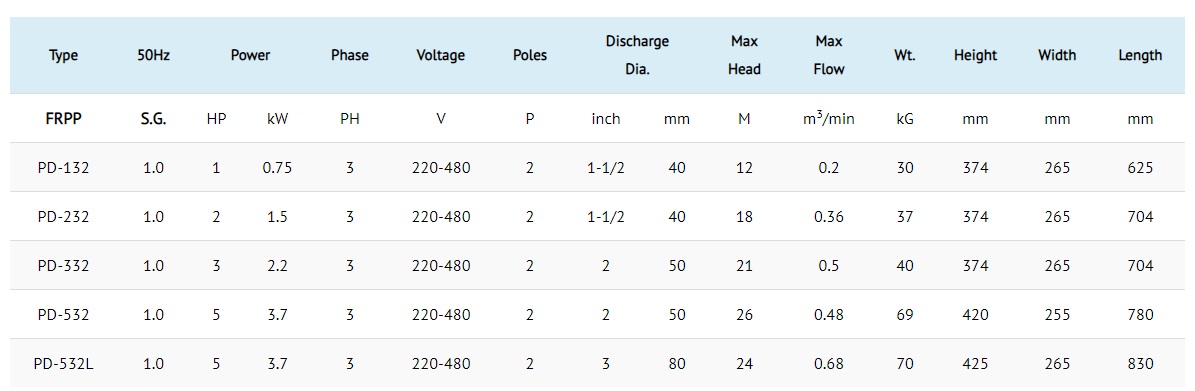

Specification 50Hz
