UB (Electronic Constant Pressure Pumps)

● UB Electronic Constant Pressure Pump
Very good for pumps with clean non-volatile liquids without solids or fibers in below applications as:
● Ideal for domestic water supply
● Pressure boosting
● Automatic water transfer
● Washing system
● Small and medium size home, cottage
● Irrigation



DESCRIPTIONS :
Robust and compact multi-stage automatic centrifugal pump with Showfou' own unique micro-processor equipped pump controller for automatic water pressure.

APPLICATIONS :
Very good for pumps with clean non-volatile liquids without solids or fibers in below applications as:

* Ideal for domestic water supply
* Pressure boosting
* Automatic water transfer
* Washing system
* Small and medium size home, cottage
* Irrigation

OPERATING LIMITS :
Cut-out flow rate: 2LPM
Maximum ambient temperature : 40 °C
Maximum water temperature : 40 °C

FEATURES :
* Showfou - UB series SUPER electronic constant pressure pump consists of a multi-stage centrifugal pump fitted with our own unique micro-processor equipped pump controller which keeps the pump running as long as there is a demand for water, eliminating fluctuating water pressure and annoying "cycling" situation in the presence of dripping taps etc.
* Our own unique micro-processor equipped pump controller replaces the conventional pressure switch and provides strong and even pressure to eliminate cycling situation. And, it also provides advanced "loss of prime" protection which will stop the pump in "loss of prime" circumstances. Therefore, it can protect the pump from dry run protection.
* The compact size UB series SUPER electronic constant pressure pump does not require large space for installation. And, we are using new super quiet motor which build-in thermal protector to provide non-intrusive and safe operation for constant enjoyment.
* All parts of the entire pump that are in contact with the water are manufactured from safe, corrosion-resistant material.

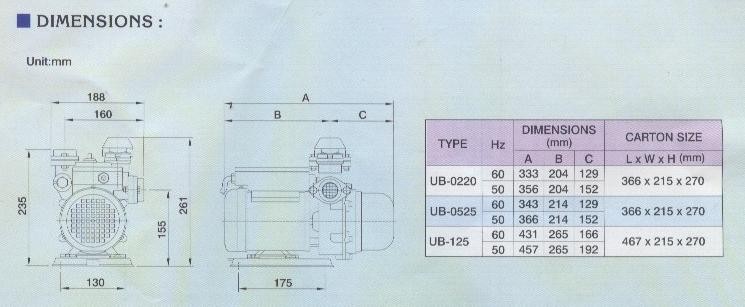

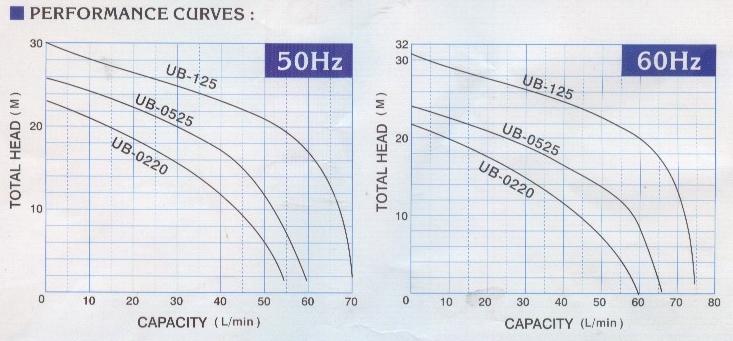

      PERFORMANCE CURVE :       DIMENSION :
