Products SHOWFOU

UA (Electronic Pressure Pumps)

● UA Electronic Constant Pressure Pump
Very good for pumps with clean non-volatile liquids without solids or fibers in below applications as:
● Ideal for domestic water supply
● Pressure boosting
● Automatic water transfer
● Washing system
● Small and medium size home, cottage
● Irrigation

DESCRIPTIONS :
Robust and compact multi-stage automatic centrifugal pump with Showfou' own unique micro-processor equipped pump controller for automatic water pressure.

APPLICATIONS :
Very good for pumps with clean non-volatile liquids without solids or fibers in below applications as:

* Ideal for domestic water supply
* Pressure boosting
* Automatic water transfer
* Washing system
* Small and medium size home, cottage
* Irrigation

OPERATING LIMITS :
Cut-out flow rate: 2LPM
Maximum ambient temperature : 40 °C
Maximum water temperature : 40 °C

FEATURES :
* Showfou - UA series SUPER electronic constant pressure pump consists of a multi-stage centrifugal pump fitted with our own unique micro-processor equipped pump controller which keeps the pump running as long as there is a demand for water, eliminating fluctuating water pressure and annoying "cycling" situation in the presence of dripping taps etc.
* Our own unique micro-processor equipped pump controller replaces the conventional pressure switch and provides strong and even pressure to eliminate cycling situation. And, it also provides advanced "loss of prime" protection which will stop the pump in "loss of prime" circumstances. Therefore, it can protect the pump from dry run protection.
* The compact size UA series SUPER electronic constant pressure pump does not require large space for installation. And, we are using new super quiet motor which build-in thermal protector to provide non-intrusive and safe operation for constant enjoyment.
* All parts of the entire pump that are in contact with the water are manufactured from safe, corrosion-resistant material.
SPESIFICATION ( 60HZ ) (50Hz Klik disini)

TYPE

MOTOR

PUMP

Default starting Pressure setting (ON) kG/cm²

Starting Pressure setting range ^*(ON) kG/cm²

CABLE

WEIGHT
(kG)

RPM

Bore

Maximum

mm²xm

Inch

LPM

UA-0220

0.2

1/4

100~240

3000

3/4"

1.3

1.3 ~ 1.7

1.25²x1

7.7

UA-0525

0.4

1/2

100~240

3000

1 "

1.7

1.7 ~ 2.0

1.25²x1

9.0

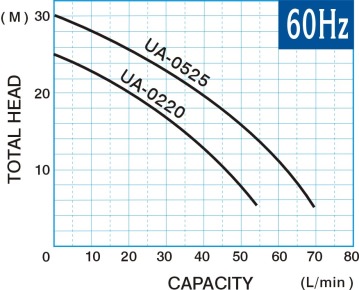

PERFORMANCE CURVE : DIMENSION :

TYPE	CARTON PACKING L x W x H (mm)
UA-0220	405x200x240
UA-0525	420x200x240

CONSTRUCTION

PART MATERIAL

Cable VCT, H05RN-F, H07RN-F, SJTW

Motor Head Cover Plastic

Pump Casing Plastic

Motor Lower Cover Cast Iron

Motor Casing Steel

Pump Casing Plastic

Impeller Stainless Steel #304

Mechanical Seal Ceramic Carbon
