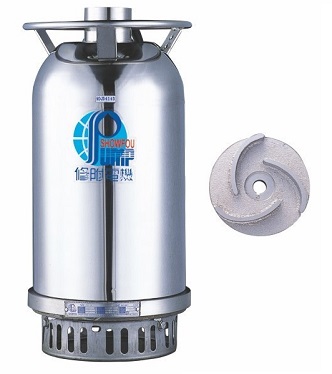

A CORROSION-RESISTANT PUMP FOR HANDLING AGGRESSIVE AND CORROSIVE LIQUIDS.
Power: 2 ~15 HP
Motor: 2 Poles
ALL WETTED PARTS ARE SCS13(#304)STAINLESS STEEL INVESTMENT CASTING .
MECHANICAL SEAL ADOPTS HIGHLY WEAR-RESISTANT SIC/SIC WITH VITON O-RING

FEATURES:

• All “wetted parts” are of the highest quality SCS13(#304) stainless steel investment casting with a smooth surface finish.
• Impeller: statically and dynamically balanced, semi-open type impeller design, prevents clogging by mud, sand, etc.
• Suction Cover: Easily replaceable.
• Triplex Seal System for less downtime and longer life: Oil-lubricated Double Mechanical Seals (highly wear-resistant SiC/SiC with Viton) and separate Viton Oil Seal, together with Viton O-Ring.
• Motor: Quality motor with a level of protection IP 68, suitable for continuous duty.
• Thermal Protector: Single phase model built-in thermal protector prevents any burning damage to the motor.

APPLICATIONS:
Very good for pumps with clean non-volatile liquids without solids or fibers in below applications as :

• Mining dewatering containing acidic fluid.
• Dyeing industry.
• Mariculture.
• Chemical plating.
• Irrigation and other general corrosive media.

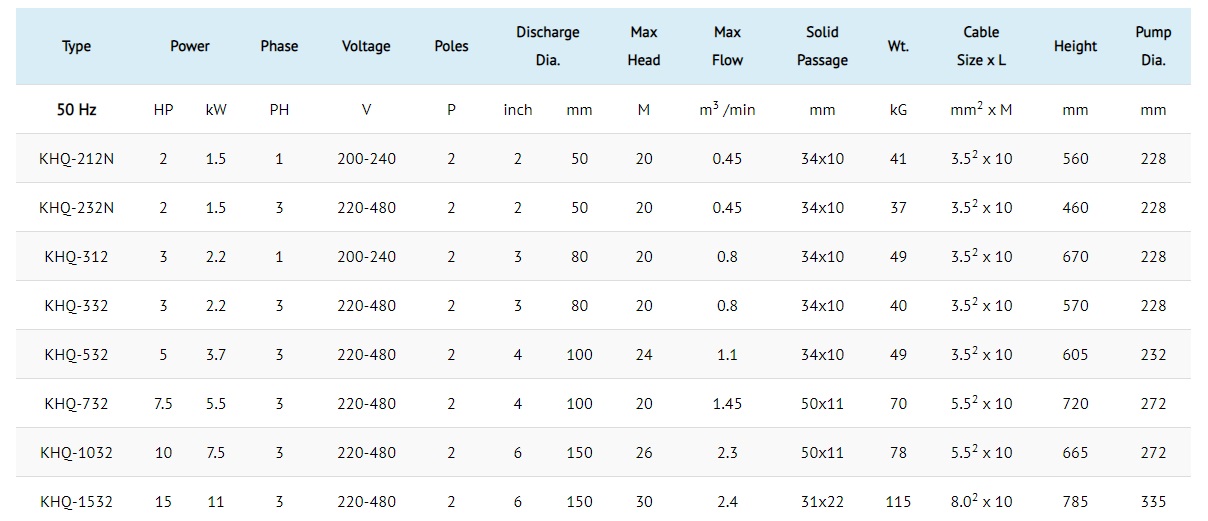

Specification 50Hz
