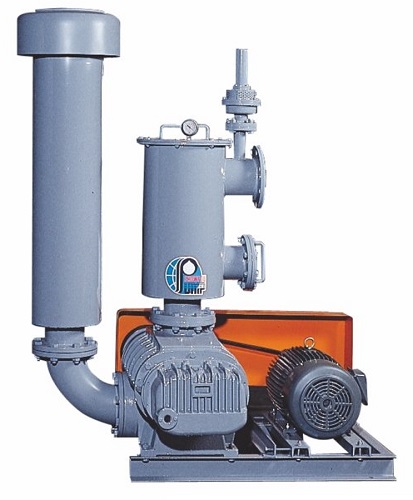

RLV model Vacuum Operation package

We also supply our customer the complete set roots blower for Vacuum operation with the standard accessories. The standard accessories are as follows: No. Name No. Name 1 Blower body 6 Belt Cover 2 Motor 7 Base plate 3 Blower pulley 14 90 degree elbow 4 Discharge silencer set (with air filter and cover) 15 Vacuum safety valve 5 V-belt 16 Suction filter tank  (with vacuum gauge)

ADOPTED WITH 3 LOBES ROTOR NEW DESIGN FOR HIGHER EFFICIENCY.
Bore size : 40 mm(1-1/2") ~ 300 mm (12")
Recommended pressure operating range: 1,000 ~ 8,000 mmAq

SINGLE STAGE INSTALLATION:
● Maxi. Pressure: 10,000 mmAq (1.0 kG/cm2)
● Maxi. Vacuum: -6,700 mmAq
DOUBLE STAGE INSTALLATION:
● Maxi. Pressure: 15,000 mmAq (1.5 kG/cm2)
● Maxi. Vacuum: -8,100 mmAq

RL type: Oil Lubrication for Gear Box, Front Bearing and Rear Bearing.

CHARACTERISTICS

• Produce a constant flow of gas at different pressures.
• No Contamination: The pumped gas does not get contaminated as there are no lubricants in the area where the compression occurs.
• Gear Box, Front Bearing and Rear Bearing: Oil Lubrication for its components.

ADVANTAGE OF 3 LOBES’ ROTOR DESIGN
Owing to the new three (3) lobes’ rotor design, the reverse flow pressure variation period is only 2/3 of that of a conventional 2 lobes’ rotor, the peak pressure is also lower. So the noise and pressure pulsation is greatly limited.

• Less backflow, steady air flow rate, lower vibration, and noise.
• Long Servicing Life: With reduced discharged pressure pulsation, it leads to lighter loading of bearings and timing gears for longer operation life.
• Large Air Flow: On the same operating speed, the 3 lobes blower can deliver large airflow and volume than the conventional 2 lobes type.
• High Efficiency: Adequate clearance between the rotors and the casing ensures no contact during operation, and this makes even higher efficiency.
• High Precision in rotors: The precision of rotors is fully controlled by the CNC machine and variation of precision between blowers is almost nil.
• Free From Vibration: The rotors are dynamically balanced in the fabrication stage already, so rotors are almost free from vibration.

• Iron & steel industries, non-ferrous metal refineries, smelters & foundries
• Food processing, bakeries
• Chemical plants
• Glass, ceramics, brick
• Oil, tar & asphalt heaters
• Pipe, wrapping machines

• Air and sandblasting
• Grain conditioning & storage
• Supercharging
• Dusting and spraying
• Drums drying and cleaning
• Sand filter regeneration
• Pressurizing paper mill headboxes

• Waste treatment plants
• Oyster washing
• Oil blending
• Ice manufacturing, prevention of ice formation in power plants
• Chemical processes
• Fish ponds, lakes
• Vinegar blending
• Asphalt refining

• Granular materials
• Insulation blowing
• Grain conveying
• Fluidizing
• Pulp conveying
• Wood and metal chip conveying
• Rock dusting
• Flour and powder

• Industrial and commercial vacuum cleaning
• Paper folding machinery
• Garment presses
• Bottle and tube filling machines
• Mat formers
• Pump priming
• Dust collecting
