FEATURES:
● Power : 1 ~ 20 HP
● Motor : IP68
● Impeller : Non-clog open type
Submersible Sewage Pumps
FO
|
FEATURES: ● Power : 1 ~ 20 HP |
|

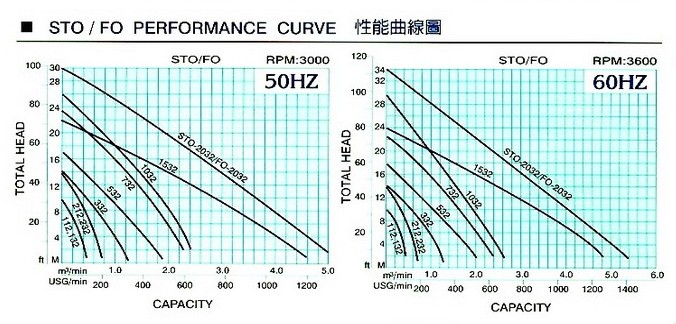

| Buku Manual | Performance Curve / Dimension |
|
|
|
SPECIFICATIONS:
| Type | Motor | Pump | Impeller | Cable | Wt. | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Power | Phase | Volt | poles | Bore | Max. Head | Max. Flow | Solid Passage | |||
| HP | PH | V | P | Inch | M | L/min | mm | M | Kg | |
| FO-112 | 1 | 1 | 220 ~ 440 | 2 | 2" | 10 | 420 | 25 | 6 | 30 |
| FO-132 | 1 | 3 | 220 ~ 440 | 2 | 2" | 10 | 420 | 25 | 6 | 30 |
| FO-212 | 2 | 1 | 220 ~ 440 | 2 | 3" | 14 | 720 | 28 | 10 | 56 |
| FO-232 | 2 | 3 | 220 ~ 440 | 2 | 3" | 14 | 720 | 28 | 10 | 50 |
| FO-332 | 3 | 3 | 220 ~ 440 | 4 | 3" | 16 | 1,300 | 40x50 | 10 | 97 |
| FO-532 | 5 | 3 | 220 ~ 440 | 4 | 4" | 18 | 2,000 | 53x50 | 10 | 97 |
| FO-732 | 7.5 | 3 | 220 ~ 440 | 4 | 4" | 26 | 2,300 | 88x46 | 10 | 152 |
| FO-1032 | 10 | 3 | 220 ~ 440 | 4 | 4" | 30 | 2,300 | 88x46 | 10 | 172 |
| FO-1532 | 15 | 3 | 220 ~ 440 | 4 | 6" | 22 | 4,500 | 117x50 | 10 | 253 |
| FO-2032 | 20 | 3 | 220 ~ 440 | 4 | 6" | 32 | 5,000 | 117x50 | 10 | 263 |
